GEPON FTTH ONU Modem Fiber Optic Transmission Network 4FE CATV WIFI EPON ONU

Name: GEPON FTTH ONU Modem Fiber Optic Transmission Network 4FE CATV WIFI EPON ONU
Brand: JiZhong
Price: 1 USD

Quality GEPON FTTH ONU Modem Fiber Optic Transmission Network 4FE CATV WIFI EPON ONU for sale

Brand Name : JiZhong

Model Number : JZOE-6404

Place of Origin : China

MOQ : 1pcs

Price : Negotiable

Payment Terms : T/T, Western Union

Supply Ability : 10000pcs per month

Delivery Time : 5 working days

Packaging Details : Outer box:365x350x235mm; Weight:6Kg/CTN; Qtys:10pcs/CTN

GPON downlink rate : 2.488Gbit/s

GPON uplink rate : 1.244Gbit/s

GPON standard : ITU-T G.980.1/2/3/4

EPON standard : 1Gbit/s

Epon up/downlink rate : 1Gbit/s

CATV wavelength : 1310/1550nm

Receiving power : -20~-2dBm

RF output level : 70~80dBuV

Contact Now

GEPON FTTH ONU Modem Fiber Optic Transmission Network 4FE CATV WIFI EPON ONU

Main features:

xPON adaptive GPON and EPON mode supported;

Protocol: GPON- G.984/ G.983 code ; EPON- 802.3-2005/CTC support G.711, G.722, G.729 and T.38 coding and encoding protocol;

Support VoIP, wifi bgn or CATV(see detailed model function);

Support L2/L3 multicast forwardingL2 bridge forwarding L3 router forwarding NAT/NAPT;

Support flexible traffic classification;

Support HQoS (Hiberarchy Quality of Service);

Parameters:

Item		Parameter
Interface	PON Interface	1 EPON optical interface Meet 1000BASE-PX20+ standard Symmetric 1.25Gbps upstream/downstream SC single-mode fiber split ratio: 1:64 Transmission distance 20KM
	User Interface	310/100Mauto-negotiation;110/100/1000 Full/half duplex mode RJ45 connector Auto MDI/MDI-X 100m distance 1 RF output Female F-Type Connector
	Power Interface	12V DC Power supply
Performance Parameters	PON Optical Parameter	Wavelength: Tx 1310nm, Rx1490nm Tx Optical Power: -1~4dBm Rx Sensitivity: -27dBm Saturation Optical Power: -3dBm Connector Type: SC Optical Fiber: 9/125um single-mode fiber
	Data Transmission Parameter	PON Throughput: Downstream 950Mbps; Upstream 930Mbps Ethernet: 100Mbps Packet Loss Ratio: <1*10E-12 latency: <1.5ms
	Business Capability	Layer 2 wire speed switching Support VLAN TAG/UNTAG,VLAN conversion Support Port-based speed limitation Support Priority classification Support storm control of broadcast Support link detection
Network Management	Management Mode	Support IEEE802.3 QAM, ONU can be remotely managed by OLT Support Remote management through SNMP and Telnet Local management
	Management Function	Status monitor, Configuration management, Alarm management, Log management
Indicator	LED Indicator	PWR, SYS,PON, LAN1~LAN4, CATV,WIFI
Physical Features	Shell	Plastic casing
	Power	External 12V 1A AC/DC power supply adapter Power consumption: <5.5W
	Dimension and Weight	Item Dimension:175mm(L) x 120mm(W) x 32mm (H) Item weight:0.4kg
	Environmental Specifications	Operating temperature: 0 to 50 ºC Storage temperature: -40 to 85 ºC Operating humidity: 10% to 90% (Non-condensing) Storage humidity: 10% to 90% (Non-condensing)

WIFI Specification:

Performance parameters	Operating Mode	Router or bridge
	Throughput	IEEE 802.11b: 11Mbps IEEE 802.11g: 54 Mbps IEEE 802.11n: 135Mbps
	Frequency	2.412 ~ 2.472 GHz
	Channel	13*Channel, configurable to meet the standard of USA, Canada, Japan and China
	Modulation	DSSS , CCK and OFDM
	Coding	BPSK, QPSK, 16QAM and 64QAM
	RF receive sensitivity	802.11b: -82dBm @ 1 Mbps; -80dBm @ 2 Mbps; -78dBm @ 5.5 Mbps; -76dBm @ 11 Mbps 802.11g: -82dBm @ 6 Mbps; -81dBm @ 9 Mbps; -79dBm @ 12 Mbps; -77dBm @ 18 Mbps; -74dBm @ 24 Mbps; -70dBm @ 36 Mbps; -66dBm @ 48 Mbps; -65dBm @ 54 Mbps
	RF output level	802.11b: 16.5 ±1dBm 802.11g: 13 ± 1dBm @ 54 Mbps; 14 ± 1dBm @ 48 Mbps; 15 ± 1dBm @ 6 ~ 36 Mbps 802.11n: 13 ± 1dBm @ 54 Mbps; 14 ± 1dBm @ 48 Mbps; 15 ± 1dBm @ 6 ~ 36 Mbps
	Encryption Mode	802.11i security: WEP-64/128, TKIP (WPA-PSK) and AES (WPA2-PSK)

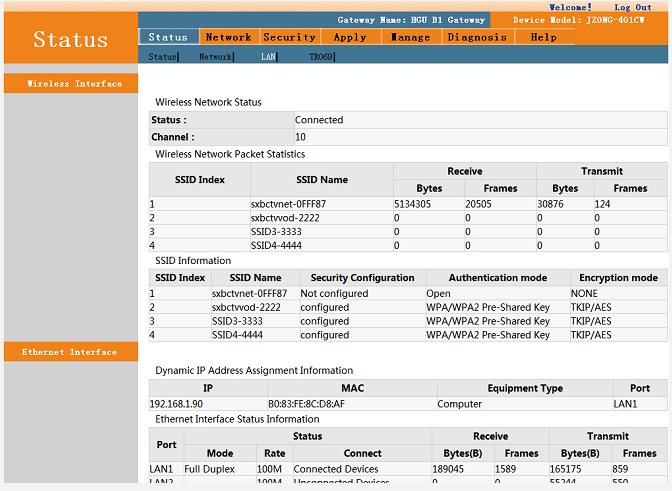

Operation Interface instructions:

GEPON FTTH ONU Modem Fiber Optic Transmission Network 4FE CATV WIFI EPON ONU

Picture Display:

GEPON FTTH ONU Modem Fiber Optic Transmission Network 4FE CATV WIFI EPON ONU

Packing:

GEPON FTTH ONU Modem Fiber Optic Transmission Network 4FE CATV WIFI EPON ONU
